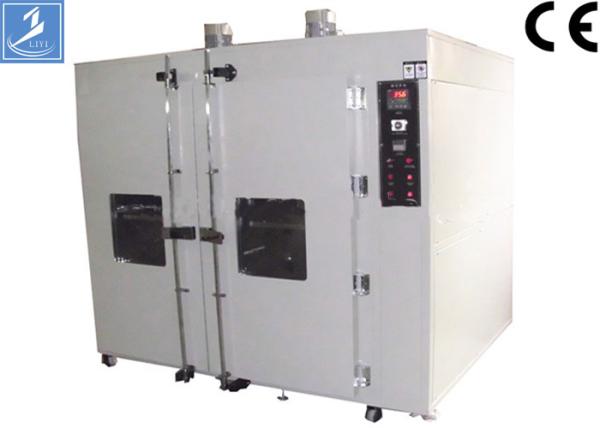

Double Wall SUS Stainless High Temperature 1792L Capacity Electric Hot Air Ovens
This equipment can provide a stable test space for pre-heating, drying, changes about physics and chemistry testing . It supplies precision temperature controller with high stability of platinum resistance to temperature that makes temperature well-distribution.
Characteristics:
1.Outside SECC steel, fine powder coating treatment; Inner SUS#304 stainless steel.
2. electric hot air industrial circulation oven use new high temperature resistant long shaft
motor
3.electric hot air industrial circulation oven use Turbine fan.
4.Silicone forced tight
5.Overtemperature protection, super load automatic power system.
6.Circulation system: air force level cycle.
7. electric hot air industrial circulation oven Heating system: PID+S.S.R.
8.The thermostat: PID microcomputer control, automatic constant temperature, temperature quickly compensation function
9.Timer: temperature to time, when the power failure alarm indication.
10.According to customer demand matching glass window can be customized according to customer specifications specified.

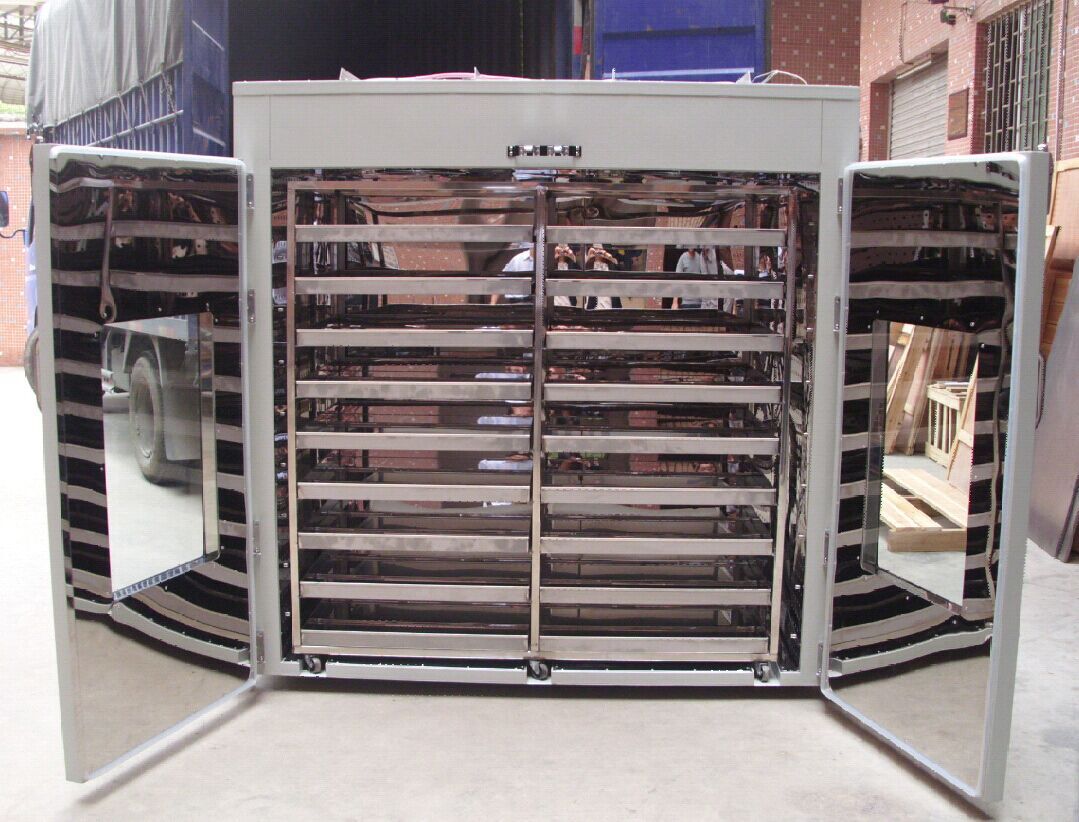

In a forced air drying oven, the forced, blower-assisted airflow design offers excellent temperature uniformity and fast recovery. A turbo blower and heavy-duty motor combine to direct air over the shelves and samples for even, constant drying, curing and baking. These units are especially ideal for glassware drying, oxyde carbolization, etc. polished stainless steel interior, removable racks, overheat protection, temp calibration, timing function. All ovens are CE compliant.
Specification(We accept customized requirements)
| Model | Inner Size W*H*D(cm) | External Size W*H*D(cm) | Temperature Range(°C) | Heating up Time | Accuracy (°C) | Uniformity (°C) | Power | Rate of work (kw) |
| LY-6160 | 160×140×80 | 180×206×104 | B:300°C | RT~100°C About 10min | ±0.3 | ±1% | 220V Or 380V | 14 |
Customized oven (our oven can be all customized)
| Inner chamber size:W×H×D(CM) customized Outer size:W×H×D(CM) according to the fact size . Temperature range:Room temperature~customized Power: Rate of work: temperature, the power is just 10% of its heating power. Accuracy:controlling accuracy: ±0.5℃ Temperature distribution: ±1.0℃%(no-load) | Optional custom made parts: 1. PID programmable controller or touch screen PLC controller. 2. Temperature recorder. 3. Automatic door switch. 4. Inner cart or stainless stell plate and layers. 5. External painted color. 6. Cable hole. 7. Other required parts. |
Our Service
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation manual. We can provide video-con.
1. Considerate Service Different countries plugs, manually change the-voltage from 110V to 380V, insurance indicator.
2.Excellent After sale Service:
12 months warranty. Besides, we can help you to repair your problem controller freely, even it's not from our factory. What you need to do is to send us the controller.
3.Commitment:
We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.
4.Good Packaging:
Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
